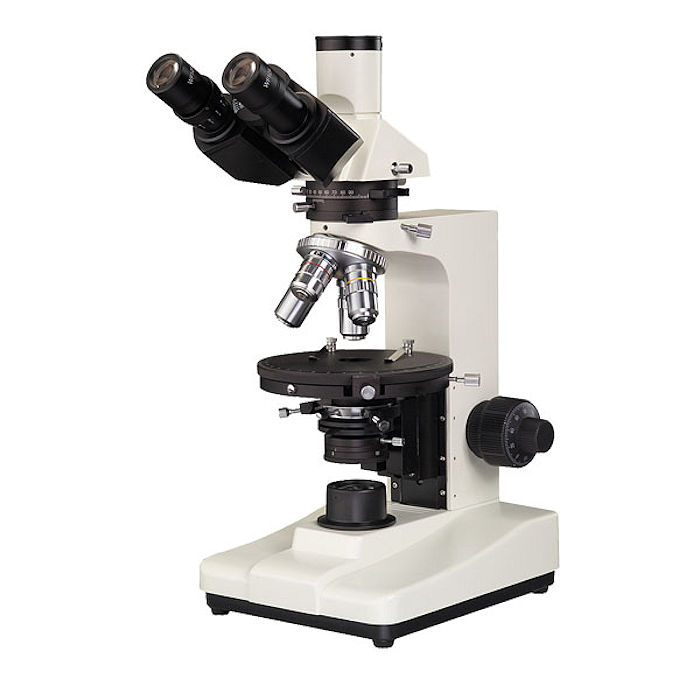

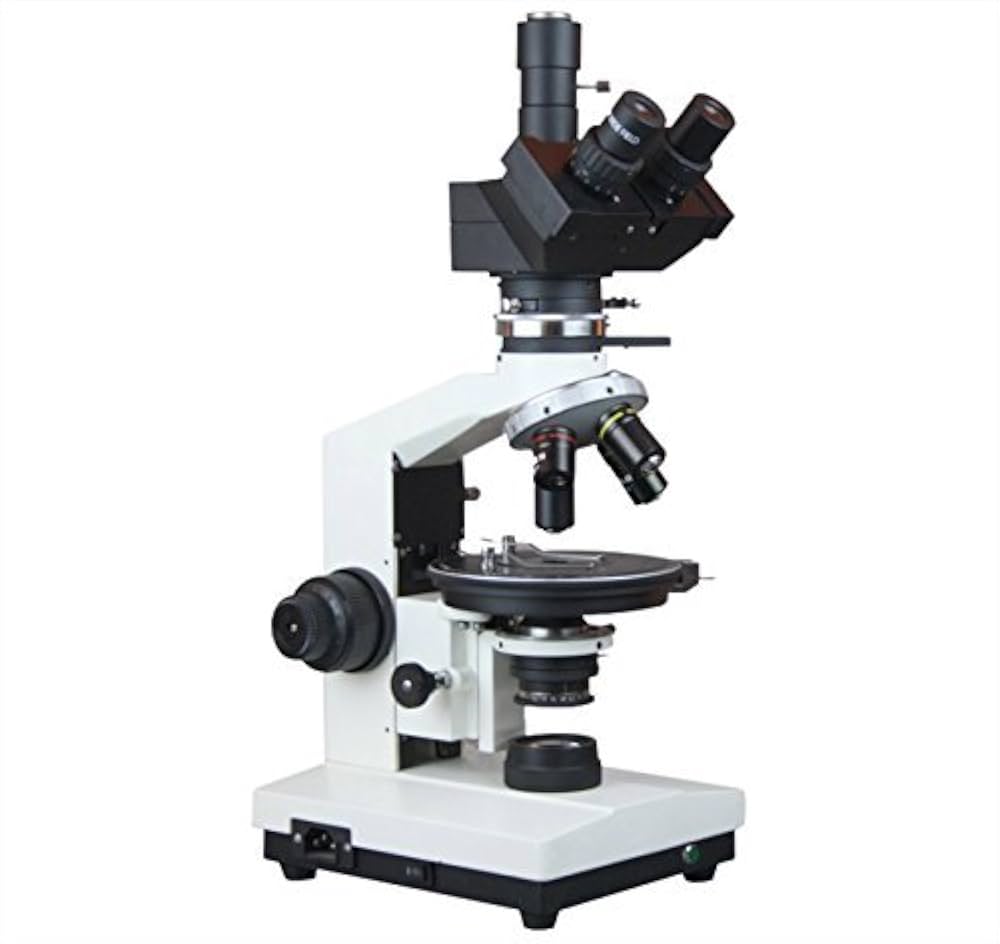

Research Polarizing Microscope

About Research Polarizing Microscope

Research Polarizing Microscope

Focusing - Coaxial focusing is provided with coarse tension adjustment ring and graduated slow motion knobs. Adjustable safety lock is attached to prevent the breakage of specimen slides.
Illuminator - Koehler's Illuminator with pre-centered 20W Tungsten Halogen source & integral

Electrict ransformerwith intensity control.Input voltage 220or110v..
Intermediate Tube - Built-in  focusable  Bertrand L ens with center adjustment. Built-in Analyzer removable  from  optical  part. Analyzer can be rotated 90 with venire reading to  Compensator 1 Lambda, 1/4 Lambda & Quartz Wedge can be inserted in the tube as per requirement.
Compensator - Gypsum (1st. order red compensating plate, 560nm). Mica (145nm) & Quartz

Wedge(I-IV order).

Objectives - Stress less flat achromatic DIN Objectives PF4x/0.10, PF10x/0.25 & PF40x/0.65 SL
Eyepieces- HKW10xPaired&WF10xCross
Polarizer - Fully rotatable Polarizer on a strain free N.A 1.25 abbe condenser with iris diaphragm.
Optional Accessories - Detachable Mechanical Stage, Objectives PF20x & PF60X, Micrometer Eyepiece WF10x, Microphotography Equipment, 30 Inclined Siedentopf Heads. Wooden storing cabinet etc.

Research Polarizing Microscope is principal piece of equipment used by the Geologists to observe the optical properties of minerals. It has indispensable applications for petrography, crystallography, geology, mineralogy, ceramics, toxicology, chemical microscopy or detecting defects in semi-conductors, finding stress points in metals, glass & textiles etc
Stage - Compact Ball bearing Rotating Stage, 140mm dia., graduation with vernier, lock & stage specimen clips.
