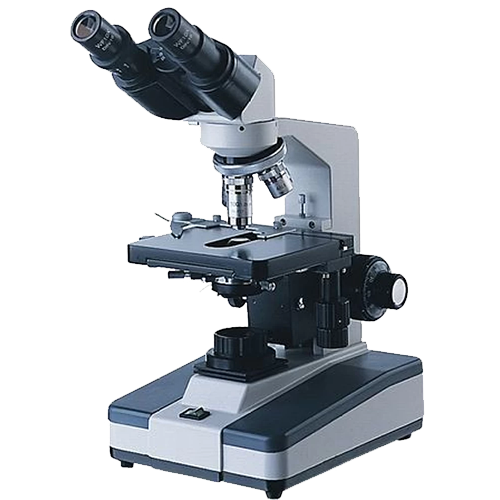

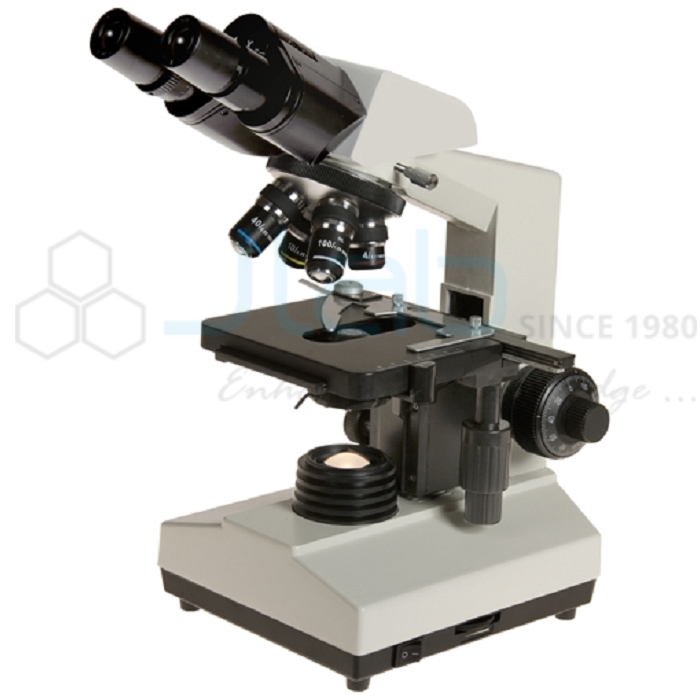

Send InquiryBinocular Co-Xial Microscope
Price 22000.0 INR/ Units
MOQ : 1 Piece
Binocular Co-Xial Microscope Specification
- Dimension (L*W*H)
- 10x10x15 Centimeter (cm)
- Usage
- laboratory use
- Operate Method
- manual
- Material
- stainless steel
- Weight
- 6 Kilograms (kg)
- Voltage
- 220 Volt (v)
- Theory
- Other
- Drawtube
- Binocular
- Resolution
- High clarity optical resolution
- Magnification
- 40x to 1000x
- Dimensions
- Standard laboratory size Millimeter (mm)
- Focus Range
- Comprehensive focus range Millimeter (mm)
- Eyepieces
- 10x wide field eyepieces
- Eyepiece Tube
- Binocular eyepiece tube
- Illumination
- LED Illumination
- Coarse Adjustment Range
- Available
- Fine Adjustment Range
- Precise movement available
- Working Stage
- Double-layer mechanical stage with X-Y movement Square Millimeter (mm2)
- View Head
- Binocular head with 360 rotation
- Interpupillary Distance
- Adjustable Millimeter (mm)
- Objective Achromatic
- Achromatic objectives (4x 10x 40x 100x oil)
- Condenser
- Built-in Abbe Condenser
- Light Source
- Embedded LED light source
Binocular Co-Xial Microscope Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 500 Pieces Per Year
- Delivery Time
- 1 Week
- Main Domestic Market
- All India
About Binocular Co-Xial Microscope
Specifications
Binocular co-excel Microscope
Nose Piece: Quadruple Ball Bearing Nose Piece gives smooth touch while rotating the objective.
Objectives: DIN Size Semi PLAN Objective 4x, 10x, 40x springs Loaded 100x with immersion oil gives Flat and Sharp Image.
Head: Well Collimated Large Nikon type head 360 degree Rotatable and 45 degree Inclined gives stain free View.
Eye Pieces: Pair of 10x anti fungus coated 18mm Wide Field.
Illumination: Through built in base 3V LED light source for Bright and Stain free Field of View.
Condenser: Bright Field Sub Stage moveable Condenser Having1.25 N.A. Iris diaphragm to hold the filter.
Mechanical Stage: Coaxial Mechanical Stage for X-Y movement.
Focusing System: Co-axial Focusing System with Three Planetary Gears Assembly works on ball bearing Mechanism.
Packing: Well standard packed Styrofoam and carton Box packing.
Accessories: White filter, Immersion oil for 100x objective, Microscopes dust Cover and cloth for cleaning the lenses.
