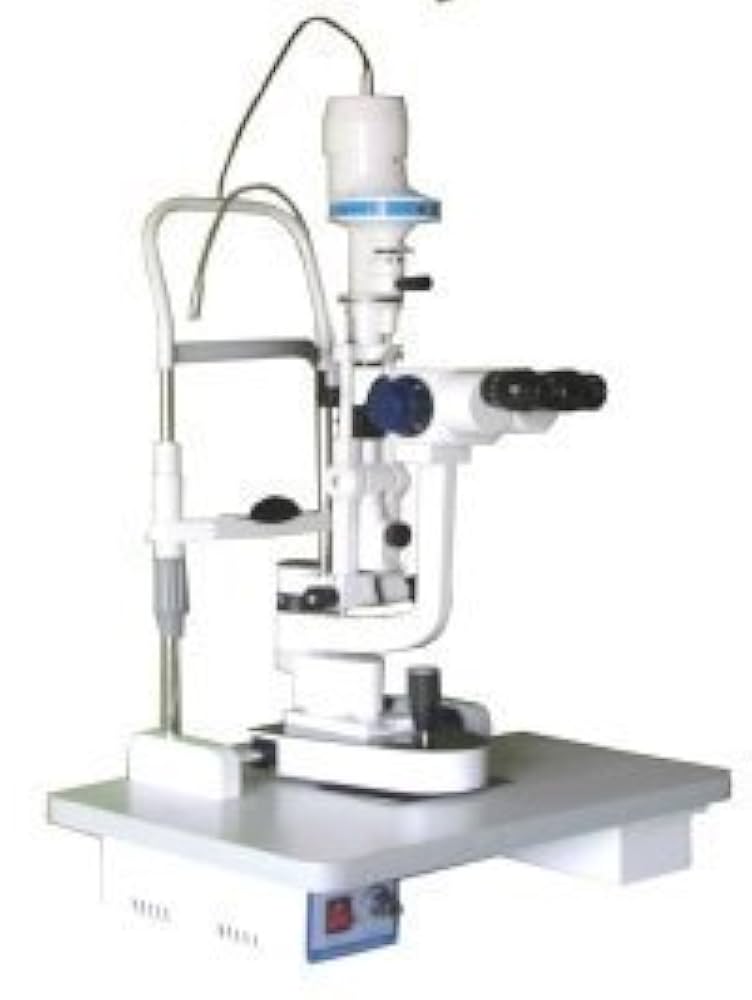

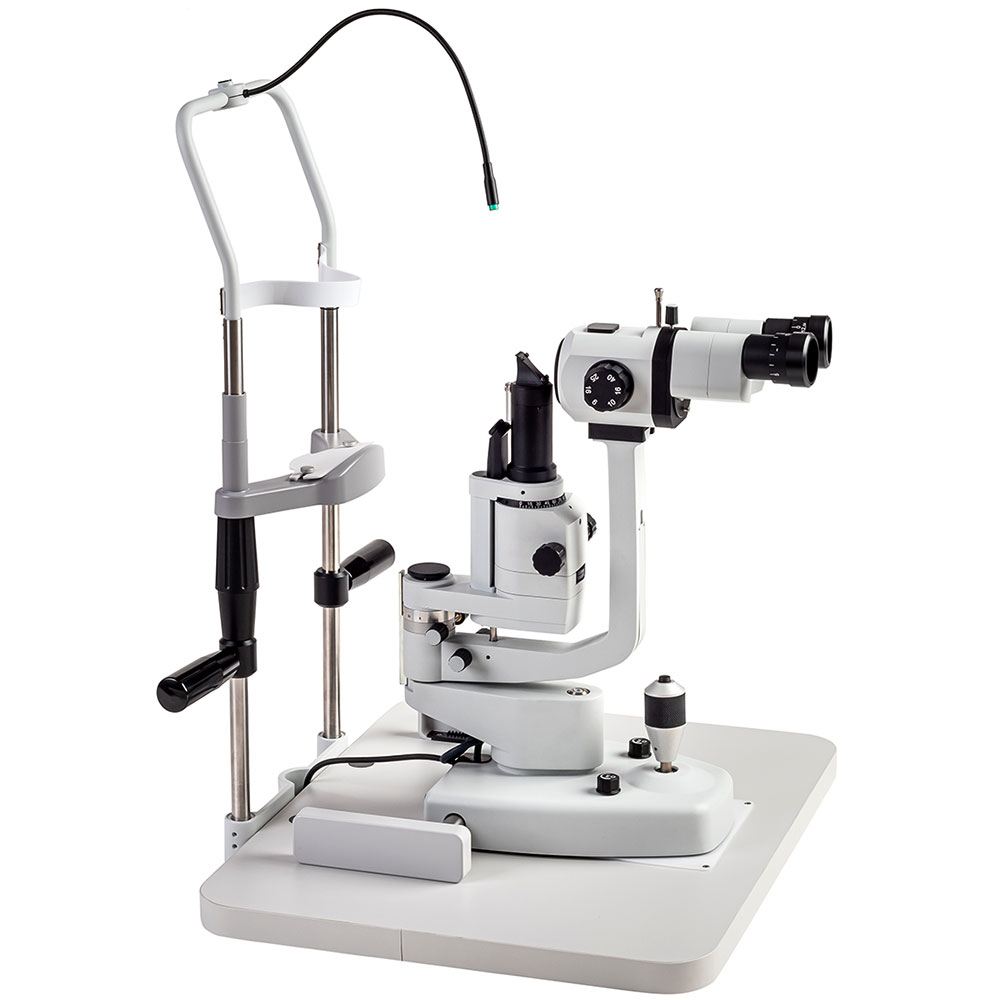

Slit Lamp

Price 39000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Slit Lamp Specification

Voltage
11 Volt (v)

Usage
Laboratory

Color
Any

Weight
20 Kilograms (kg)

Product Type
Slit Lamp

Warranty
Yes

Automation Grade
Manual

Operate Method
Manual

Material
Mild Steel

Application
Laboratory

Equipment Materials
Slit Lamp

Slit Lamp Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Month

Delivery Time
1 Week

Main Domestic Market
All India

Certifications
CE CERTIFIED CO. NSIC MSME CERTIFIED ISO 9001:2015

About Slit Lamp

A slit lamp specificationincludes features of its microscope, illumination system, and mechanical aspects.Key microscope specifications are magnification (e.g., 6x, 10x, 16x, 25x, 40x) and interpupillary adjustment (55-75mm).For the illumination system, specifications include slit width and length (often 0-14mm), slit angle (0-180 degrees), and various filters (e.g., red-free, cobalt blue, heat absorption).Mechanical specifications cover the motorized table, longitudinal (90mm) and lateral (95mm) movement, and chinrest vertical movement (e.g., 55-80mm).

Microscope Specifications

Type:Galilean converging binocular microscope
Magnification:Stepwise magnification with options like 6x, 10x, 16x, 25x, 40x
Eyepiece:Typically 12.5x, often with crosshair-reticules
Field of View:Varies with magnification, for example, 23mm to 5.6mm dia.
Interpupillary Adjustment:Range from 55mm to 75mm

Illumination System Specifications

Slit Width:Continuously variable, commonly from 0mm to 14mm
Slit Length:Continuously variable, from 1mm to 14mm
Slit Angle:Can range from 0 to 180 degrees, allowing for horizontal scanning
Filters:Heat absorbing, red-free, cobalt blue, and sometimes UV cut or ND filters
Illumination Source:LED or Halogen/Xenon lamps with high intensity (e.g., up to 600,000 lux)

Mechanical Specifications

Motorized Table:Often included with features like longitudinal, lateral, and vertical movement
Longitudinal Movement:Typically a range of at least 90mm
Lateral Movement:Usually at least 95mm
Vertical Movement:A range of at least 30mm for the microscope/illumination system
Chinrest Movement:Vertical movement, commonly 55mm or more
